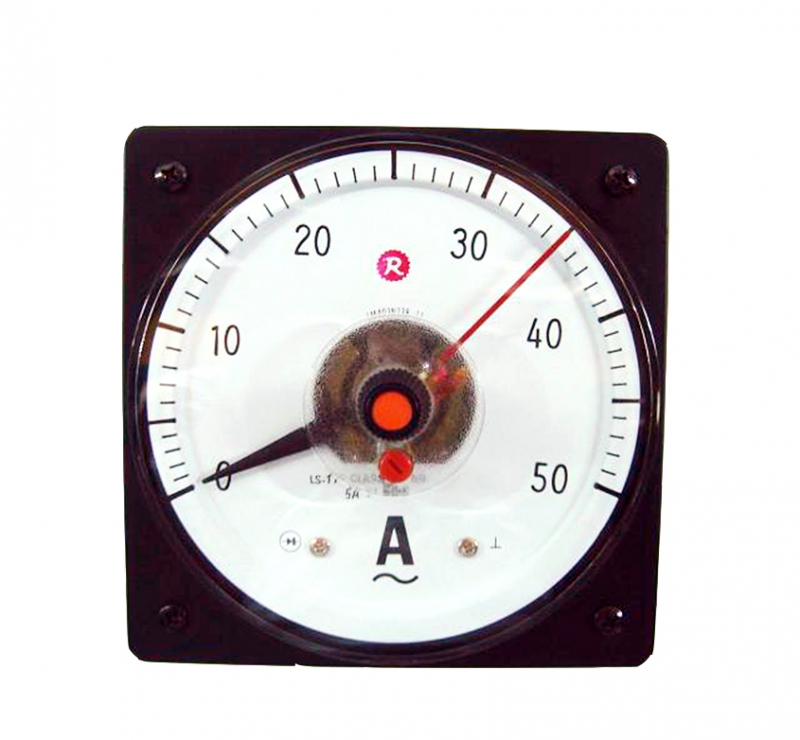

Wide angle Marine Instruments

Model: ls-110 ls-80

金彩汇Accuracy: level 1.5

Full scale angle: 250

Full scale arc length: 183mm.71/4

金彩汇Box body and composition: polypropylene resin, plastic table body, electronic terminal block, four bolts fixed installation

金彩汇Color: white dial, black terminal block, gray table body

Pointer: Black sword type

Above 30A DC measurement range. Use 50mvdc ammeter and external diverter

金彩汇Above 300V DC measurement range. Use LMA voltmeter and external part voltage device

Above 5A AC measurement range. Use 5aac ammeter and external current transformer

Above 600vac measurement range. Use 150vac voltmeter and external voltage transformer

LS-110KW：110V，220V，380V，500V.1A，5A

金彩汇For any ratings outside the scope listed in the table above, external current / voltage transformers may be used

金彩汇The instrument is equipped with 110v/5a instrument for measurement

LS-110/80COS：110V， 200V， 380V， 500V1A， 5A

金彩汇For any ratings outside the scope listed in the table above, external voltage transformers may be used

金彩汇110v/5a instrument measurement

LS-100/80Hz110V，220V，380V，500V

For any rating outside the scope listed in the table above, 110V can be provided through voltage transformer

/5A instrument measurement

Ls-110kw - grade 1.5

金彩汇Ls-110cos - level 1.5

金彩汇Ls-110hz - Class 1.5
